Unix
Unix is a family of operating systems officially trademarked as UNIX®. These operating systems are computing environments that are optimized for multi-tasking across multiple users. The original system was developed by AT&T in 1969 as a text only system. There are many Unix variants or Unix-like systems (e.g. GNU/Linux, Sun Solaris, IBM AIX, and Mac OS X). On Windows, Cygwin is a program that provides a Unix-like environment.
The main components of a Unix operating system include:
Kernel – bridge between hardware (i.e. silicon) and application (i.e. software)
Shell – command line interface to enable user interaction with the system
File System – the organization structure for how files are stored
Unix File System
The Unix file system organizes files and directories into a hierarchical structure like the root system of a tree.
The "root" directory (e.g. "/") is the top of the hierarchy.
Standard directories within the root directory:
/binand/usrcontain commands needed by system administrators and users/etccontains system-wide configuration files and system databases/homecontains the home directory (~) for each user (In some systems, the home directories may be in a different location such as/usersor/Users)
When traversing directories
working directory (.) is the directory that a user currently is in
parent directory (..) is the directory above the working directory
path or pathname specifies where a user is in the file system
full path or absolute path points to the same location regardless of the working directory (i.e., it is written in reference to the root directory)
relative path is the path relative to the working directory

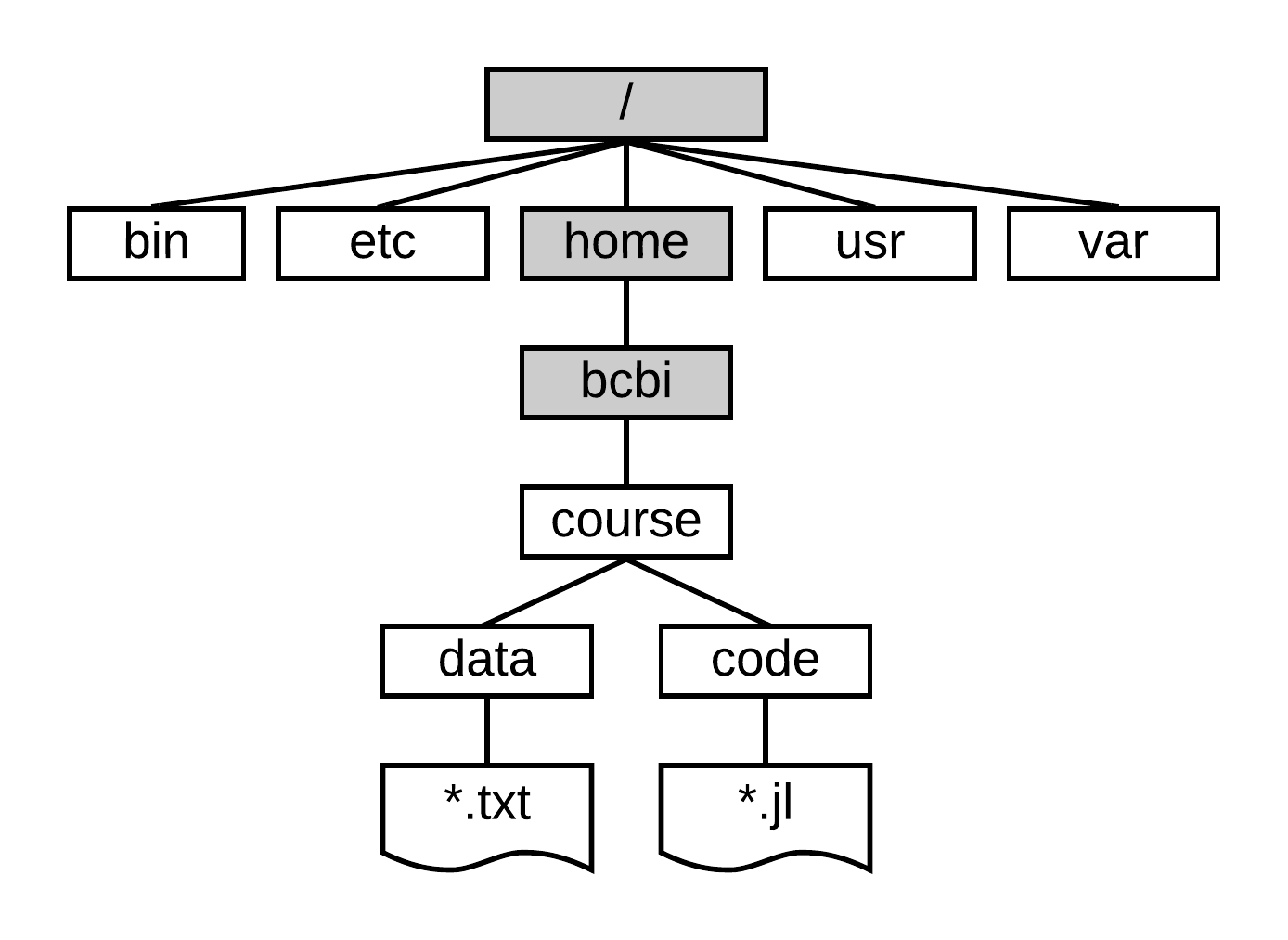

If the working directory is the home directory for bcbi, the full path for the course directory is /home/bcbi/course while the relative path is just course. A schematic of this is below:
If code then becomes the working directory, the full path for the data directory from there is /home/bcbi/course/data while the relative path is ../data. A schematic of this is below:
Understanding Directory/File Ownership and Permissions
Unix Shell

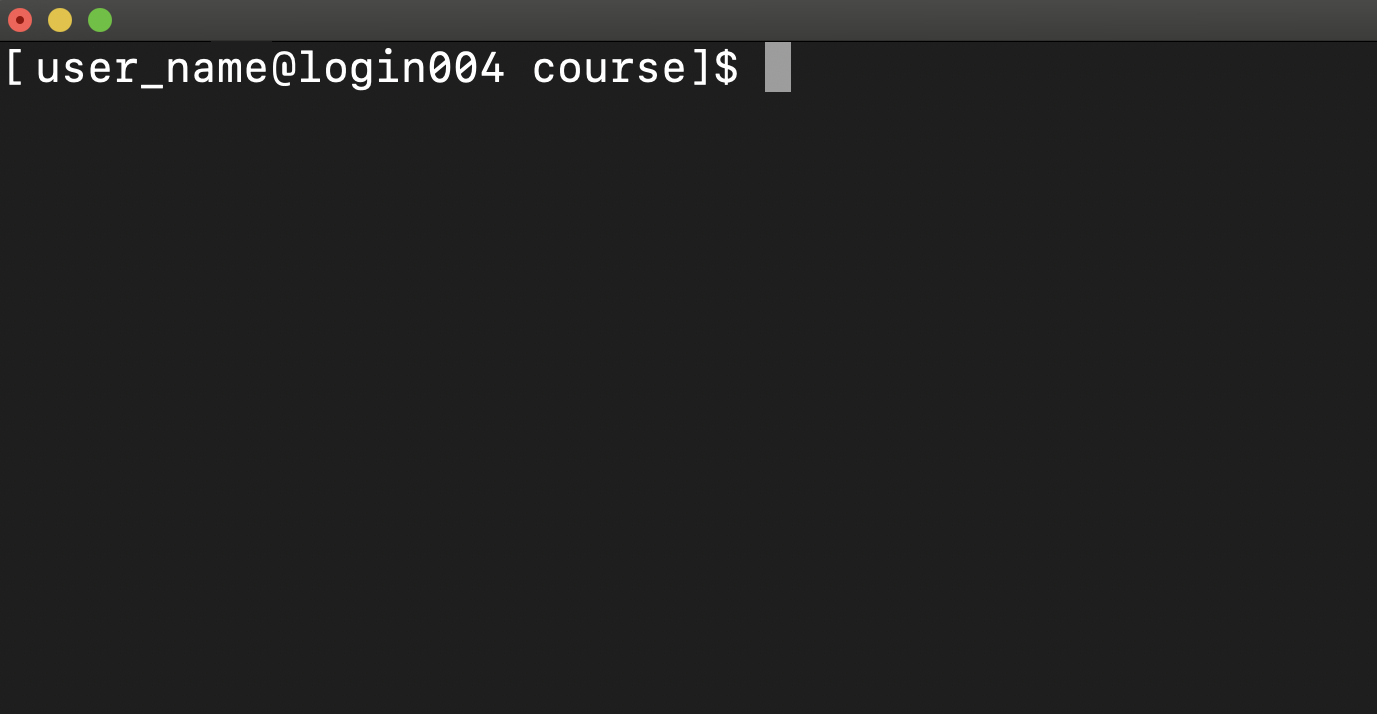

The Unix shell provides a command line interface for interacting with the operating system and is where commands are entered. An example below is a Mac OS X Terminal Shell logged into a RedHat Linux Server as user_name.
The prompt may look different depending on your shell (e.g., Bourne shell [sh], C shell [csh], or Bourne-Again shell [bash])
Default prompts include
$and%The prompt
#typically appears when logged in as thesuperuserorroot userwho can do anything on the system, so should be restricted to trusted users, used only when necessary and with caution. While you may be able to do this on a system you control, you are unlikely to ever have root priviledges on a shared computing resource (e.g. Oscar or Stronghold at Brown University)The prompt can be configured to include additional information such as hostname, username, and pathname (e.g.,
computer:/home/bcbi/course bcbi $).
Unix Commands
There are many Unix commands. Some commands will display output and then return to the shell prompt while others will just return to the shell prompt to indicate that it has executed the last command.
Unix command syntax:
Case-sensitive (pwd ≠ PWD)
May involve one or more arguments
Argument may be an option (or flag or switch) for that command
Argument may be a file or directory
To get to a Unix shell on your computer:
For Mac, launch the Terminal application (under Applications → Utilities → Terminal)
For Linux, launch the Terminal application
For Windows, launch the PowerShell application
Get help from manual (man) pages on commands: (Use spacebar or up and down arrows to scroll through pages and then press q to quit)
Determine what directory you are currently in with pwd (present working directory):
Get a listing of current directory contents using ls:
Create course directory using mkdir: (Replace course with class name - e.g., methods2020 or biol6535)
Get a listing of current directory contents with details using ls:
Change into course directory using cd: (Replace course with class name - e.g., methods2020 or biol6535)
Working with Data
File and Directory Navigation
ls
directory listing (remotely in sftp)
lls
local directory listing (sftp only)
ls -al
formatted listing with hidden files
cd dir
change directory to dir (remotely in sftp)
lcd dir
change local directory to dir (sftp only)
cd
change to home (remotely in sftp)
pwd
show current directory (remote directory in sftp)
lpwd
show current local directory
mkdir dir
create a directory dir
rm file
delete file
rm -r dir
delete directory dir
rm -f file
force remove file
rm -rf dir
force remove directory dir *
cp file1 file2
copy file1 to file2
cp -r dir1 dir2
copy dir1 to dir2; create dir2 if it doesn't exist
mv file1 file2
rename or move file1 to file2 if file2 is an existing n directory, moves file1 into directory file2
put file
copy local file to current remote directory (sftp only)
get file
copy remote file to current local directory (sftp only)
System Information
date
show the current date and time
cal
show this month's calendar
uptime
show current uptime
who
display who is online
whoami
who you are logged in as
Analyzing and Searching Files
wc
counts the number of lines, words, bytes in file
wc -l
counts the number of lines in file
cut -f1 file
cut out selected portions (first head ) of each line of a tab-delimited file
cut -d| -f1,2,3 file
cut out columns 1,2, and 3 from a pipe-delimited file
sort file
sort lines of text file file
uniq file
report or filter out repeated lines in a file
grep pattern files
search for pattern in files
grep -v pattern files
search for lines that do not contain pattern in files
awk pattern file
manipulate data and generate reports
sed pattern file
text stream editor
Common Shortcuts
Ctrl+A
go to beginning of current command
Ctrl+E
go to end of current command
Ctrl+C
halts the current command
Ctrl+Z
stops the current command, resume with fg in the foreground or bg in the background
Ctrl+D
log out of current session, similar to exit
Ctrl+W
erases one word in the current line
Ctrl+U
erases the whole line
Ctrl+R
type to bring up a recent command
!!
repeats the last command
exit
log out of current session
File Content Browsing
less file
displays file contents one screen at a time (similar to more but enables mouse scrolling because less is more)
head file
displays the first few lines of a file.
tail file
displays the last few lines of a file.
File Permissions
chmod octal file
change the permissions (in either a ssh or sftp session) of file to octal, which can be found separately for user, group, and world by adding:
4
read (r)
2
write (w)
1
execute (x)
Exercises
Analyze the MIMIC-IV Demo Files Using Unix Commands - Forthcoming!
Analyze the SyntheticRI Demo Files Using Unix - Forthcoming!
Resources
Brown CCV: Quick Reference / Common Linux Commands
